Supermini, high-powered RH series DC servo actuators were developed in order to control machinery and equipment smoothly, speedily and accurately.
![](images/product12333.jpg)
|
Small-sized precision-control speed reducer Harmonic Drive®:
A high level of positional accuracy and resolution, coupled with unchallenged compact and lightweight configuration, are the pride of the supermini RH series DC servo actuators.
High-powered DC servomotors:
These are highly responsive DC servomotors created in pursuit of optimal magnetic circuit. These actuators can substantially reduce the time required for positioning.
High precision optical encorder:
Supermini RH series servo actuators can resolve short form wave output signals up to 4 times of the encorder's resolution.
Output axis support bearings of high rigidity:
Supported by large-sized, high-precision bearings, the output axis can provide support for large loads.
Used for:
• Semiconductor manufacturing systems
• FPD manufacturing systems
• Electronic component insertion machines
• Measurement of analytical and test systems |
![](images/sab_title2.gif)
![](images/code14577.gif)
Type: RH series
Size: 5, 8, 11, 14
Version symbol: D
Output shaft rated rotational speed (r/min)
Rated output (W)
• RH-5, RH-8 x 1
• RH-11, RH-14 x 10
Option symbols
• E: Incremental Encoder
• T: Tachometer
Encoder resolution
• 100: 1000p/r
• 036: 360p/r
Encoder power supply
• A: +5V
• D: +5∼12V
Encoder output type
• O: Open Collector type
• L: Line Driver type
Special specification (Suffix "SP" is only special specification)

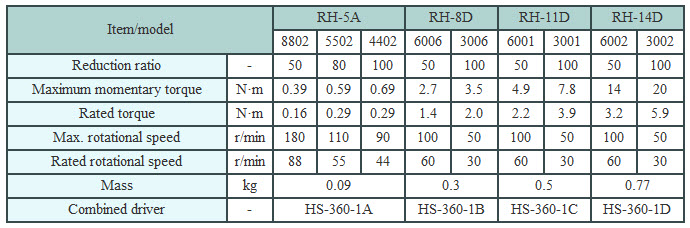

![](images/sab_title3.gif)
![](images/11-24-2012 4-56-35 PM01.jpg)

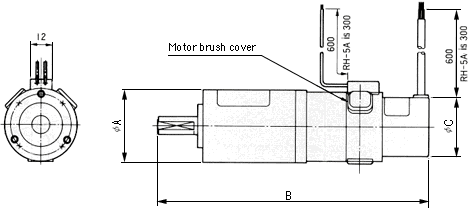

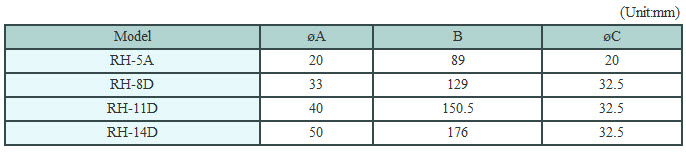

![](images/sab_title4.gif)
